New Phytologist 184: 885-897 (2009)

The NADPH-Oxidase AtrbohB plays a role in Arabidopsis seed after-ripening [W]

Kerstin Müller, Anna Catharina Carstens, Ada Linkies, Miguel Angel Torres, Gerhard Leubner-Metzger

University of Freiburg, Faculty of Biology, Institute for Biology II, Botany / Plant Physiology, Schänzlestr. 1, D-79104 Freiburg, Germany, Web: 'The Seed Biology Place' http://www.seedbiology.de (K.M., A.C.C., A.L., G.L.-M.)
Centro de Biotecnología y Genómica de Plantas (UPM-INIA), Universidad Politécnica de Madrid, 28223 Pozuelo de Alarcón (Madrid), Spain (M.A.T.)

Received April 30, 2009; accepted July 13, 2009; published online September 15, 2009
DOI 10.1111/j.1469-8137.2009.03005.x

Fig. 4 alternative splicing

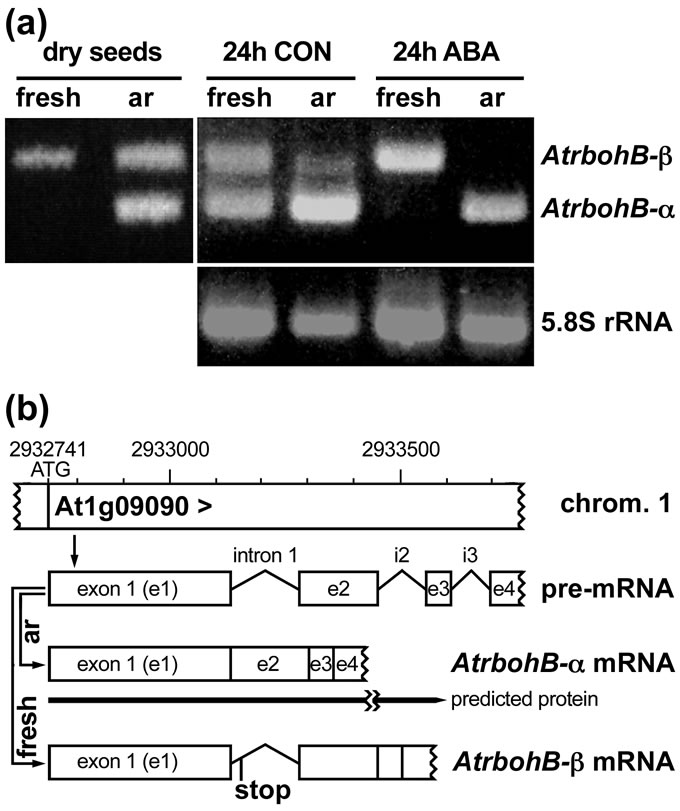

Figure 4.
Alternative AtrbohB mRNA splicing is hormonally and developmentally regulated in Arabidopsis WT seeds. (a) Semiquantitative RT-PCR of fresh or after-ripened (ar) seeds. RNA was extracted from dry seeds and from seeds imbibed for 24 h in medium without (CON) or with 1 µM ABA added (24 ºC, continuous light). Two AtrbohB RT-PCR fragments were obtained: AtrbohB-a (485 bp) and AtrbohB-b (635 bp). The relative abundance of the two transcript types changed in the presence of ABA depending on the developmental state of the seeds. 5.8S rRNA was used as a loading control. Note that the RT-PCR results of dry and imbibed seeds can only be compared qualitatively, i.e. which bands are amplified. As we cannot expect 5.8 S rRNA to be constant between these two states a direct semiquantitative comparison of dry and imbibed seeds is not possible. (b) Diagram illustrating the alternative splicing of AtrbohB mediated by seed after-ripening. The upper parts show the location of the AtrbohB gene (At1g09090) on chromosome 1 and the first four exons and three introns of the transcribed pre-mRNA. In ABA-treated after-ripened seeds splicing of this pre-mRNA leads to the AtrbohB-a mRNA for which the predicted protein is drawn below. In ABA-treated fresh seeds, intron 1 of the pre-mRNA is retained in the AtrbohB-ß mRNA. Introns 2 and 3 are spliced out. Retention of intron 1 leads to a premature termination codon.



Article in PDF format (440 KB)
Abstract
Figure 5
Figure 1         Figure 2         Figure 3         Figure 4
Figure 6         Suppl. Figures S1&S2          Suppl. Table S1
